Description

roduct Details

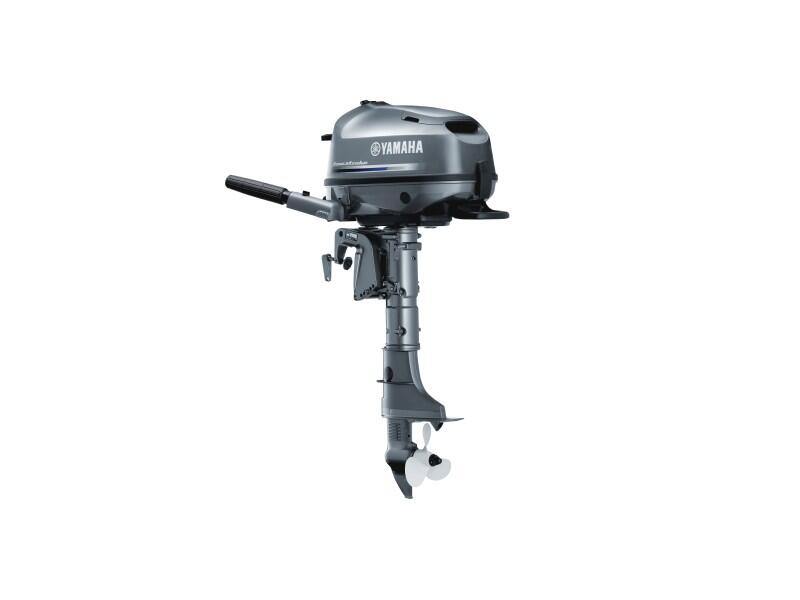

Easy-to-carry - and so easy to enjoy
The compact size, large carrying handle and built-in fuel tank all enhance its portability – and start-up is easy with Yamaha's CDI Ignition System. Low fuel consumption, simple controls and low noise and vibration levels, along with Yamaha reliability, come as standard.

So for families to get on the water easily - or for a yacht owner wanting a handy auxiliary - the 6hp offers the smartest solution.

Details

Shallow Water Drive for cruising close inshore
Unique 3-position oil-leak-free storage system
180º steering for comfortable manoeuvring
Large F-N-R (Forward-Neutral-Reverse) shift lever
Built-in 1.1L fuel tank
2-way change-over system for portable tank option
Lighting coil option offers 12V 6A power supply
Convenient auxiliary priming pump in the cowling
Auto decompression for easier starting
Stylish design with a smart grey top cowling
Latest-generation Yamaha styling and graphics
Lightweight and portable with a large carry handle
Engine
Engine type 4-stroke
Displacement 139 cm³
No. of cylinders/configuration 1, OHV
Bore x stroke 62.0 mm x 46.0 mm
Prop shaft output at mid range 4.4kW / 5,500 rpm
Full throttle operating range 4,500 - 5,500 rpm
Lubrication system Wet sump
Fuel Induction System 1-Carb
Ignition / advance system CDI
Starter system Manual
Gear ratio 2.08 (27:13)
Dimensions
Recommended boat transom height S:440mm L:568mm
Weight with propeller F6CMHS: 27.0 kg, F6CMHL: 28.0 kg
Fuel tank capacity 1.1 litres (Built-in fuel tank) or optional separate fuel tank
Oil pan capacity 0.6 litres
Additional features
Control Tiller handle
Trim & tilt method Manual
Lighting Coil / Alternator 12V - 6A *optional
Tilt limitter (only for remote control specs) -
Engine immobiliser -
Propeller Included
Counter Rotation Model -
Shallow Water Drive Standard
Digital Network Gauge II (LCD Color) -
Digital Network Gauge (Round/Square) -
Variable Trolling RPM -
Dual Battery Charging System -
Shift Dampener System (SDS) -
Remark The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft
When purchasing this product or any other outboards please choose 'postage to be confirmed' as the delivery cost will be calculated and charged after purchase, once we have got your address and can give an accurate delivery price. We will then send you a link for the delivery payment, once this is paid the outboard will be dispatched
